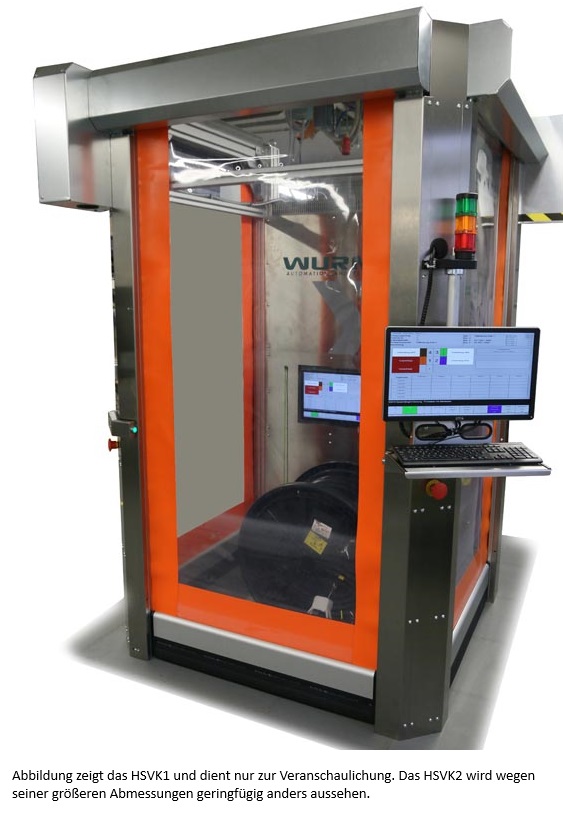

High Voltage Test Stand for multipole cables and wires
Type HSVK1
Item: 39091
Test stand for determining the insulation effect / dielectric strength of 1 to 4-pole cables with or without shielding.
[Hard facts]
• Test area: floor-level, loading possible from 3 sides
• Cable on drums or on rings
• Device for quick and Safety contacting
• Connection test incl. monitoring of correct contacting
• DC test: 800V to 8,000V including localization of the fault location
• AC test: 500V to 5,000V with 50 or 60Hz (built-in FI)
• Automatic test sequence incl. storage of result data
Test stand for determining the insulation effect / dielectric strength of 1 to 4-pole cables with or without shielding.
[Hard facts]
• Test area: floor-level, loading possible from 3 sides
• Cable on drums or on rings
• Device for quick and Safety contacting
• Connection test incl. monitoring of correct contacting
• DC test: 800V to 8,000V including localization of the fault location
• AC test: 500V to 5,000V with 50 or 60Hz (built-in FI)
• Automatic test sequence incl. storage of result data
Description
Teststand for high voltage insulation test on multipole cables.
Specification test items
*************************
Cable on drum or cable on rings.
Cables with up to 4 wires plus shield can be contacted and tested.
Permissible cable capacity (without consideration of the inductance):
At 1000 V 6.4 uF
At 5000 V 1.3 uF
If the test specimen has a higher capacity or if a resonant circuit is formed due to the inductance which distorts the AC test significant, only partial lengths can be tested.
Test chamber easily accessible
*************************
Automatic high-speed-rolling-doors on three sides of the test room enable loading and unloading of the specimen at floor level without any step. Handling can be done from 3 sides with a forklift or trolley.
Contacting
*************************
Two robust and heavy-duty connection heads grant easy, quick and reliable connection of wires and shield.
Correct connection and continuity of each wire is checked automatically.
Test Options
*************************
Test Parameters
*************************
DC test: 800Volt up to 8,000 Volt max. 30 mA
AC test: 500Volt up to 5,000 Volt 60 Hz, designed for capacitive load and maximum 2 Amps.
For each test sequence, up to 6 test-steps can be defined. For each test-step the DC- and AC-Voltage level and time can be defined and which wires shall have HV-potential or GND.
These test-steps can be stored in the database of the machine and they can be used for different cables and wiretypes.
Result data
*************************
Testparameters and results are stored automatically.
External communication/ data exchange
*************************
Data exchange is implemented via CSV files, using an FTP-Server
Option, not included:
Communication via MySQL database
Option, not included:
Customer specific communication (has to be defined and implemented)
Dimensions and Weight
*************************
Size of testchamber, inner dimensions: 1,3m x 1,18 m, 2,1m high
Rolling doors opening: 1.1m wide, 2.1m high
Floorspace: approx.2.05m x 2.2m,
Height: approx. 2.6m
Weight: approx. 1.200 kgs
Electrical Power
*************************
3 phase 400V + NL + PE, 60 Hz, 17kVA, other Voltages on request
required voltage stability: better than +/-5%
Backup fuse: 63A, type C
Scope of delivery
*************************
Completely functionable teststand including:
Specification test items
*************************
Cable on drum or cable on rings.
Cables with up to 4 wires plus shield can be contacted and tested.
Permissible cable capacity (without consideration of the inductance):
At 1000 V 6.4 uF
At 5000 V 1.3 uF
If the test specimen has a higher capacity or if a resonant circuit is formed due to the inductance which distorts the AC test significant, only partial lengths can be tested.
Test chamber easily accessible
*************************
Automatic high-speed-rolling-doors on three sides of the test room enable loading and unloading of the specimen at floor level without any step. Handling can be done from 3 sides with a forklift or trolley.
Contacting
*************************
Two robust and heavy-duty connection heads grant easy, quick and reliable connection of wires and shield.
Correct connection and continuity of each wire is checked automatically.
Test Options
*************************
- Connection test (low voltage 24VDC)
- Fault detection test (if a fault was detected already with the low voltage test)
- DC test including a fault position detection
- AC test - selectable (combined DC and AC test)
Test Parameters
*************************
DC test: 800Volt up to 8,000 Volt max. 30 mA
AC test: 500Volt up to 5,000 Volt 60 Hz, designed for capacitive load and maximum 2 Amps.
For each test sequence, up to 6 test-steps can be defined. For each test-step the DC- and AC-Voltage level and time can be defined and which wires shall have HV-potential or GND.
These test-steps can be stored in the database of the machine and they can be used for different cables and wiretypes.
Result data
*************************
Testparameters and results are stored automatically.
External communication/ data exchange
*************************
Data exchange is implemented via CSV files, using an FTP-Server
Option, not included:
Communication via MySQL database
Option, not included:
Customer specific communication (has to be defined and implemented)
Dimensions and Weight
*************************
Size of testchamber, inner dimensions: 1,3m x 1,18 m, 2,1m high
Rolling doors opening: 1.1m wide, 2.1m high
Floorspace: approx.2.05m x 2.2m,
Height: approx. 2.6m
Weight: approx. 1.200 kgs
Electrical Power
*************************
3 phase 400V + NL + PE, 60 Hz, 17kVA, other Voltages on request
required voltage stability: better than +/-5%
Backup fuse: 63A, type C
Scope of delivery
*************************
Completely functionable teststand including:
- All necessary safety measures,
- Controller software,
- Controller IPC with screen and keyboard
- ERP - terminal with screen, keyboard, mouse
